7012 Stuff
As we say in the sticks, rougher than a cob...
sa380545.pdf  7012 Models 300 Series Installation and Service Guide
sa380544.pdf  7012 Models 300 Series Operator Guide

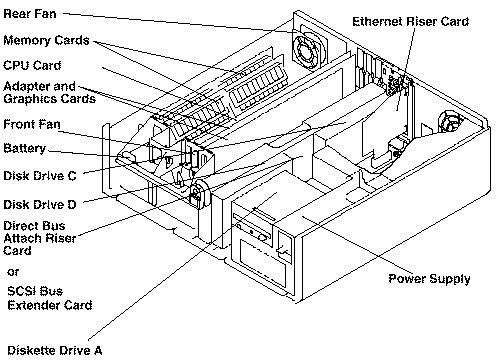

7012-320 (early) Open

Ports on Models 320, 32E, and 32H:

Note: There are two 12-inch converter cables shipped with models 320, 32E, and 32H. These cables are used to connect 25-pin D-shell connectors to serial ports S1 and S2.

Disk Drive (Bus-Attached): Models 320, 32E, 32H

Disk Drive (SCSI-Attached): Models 320, 32E, 32H

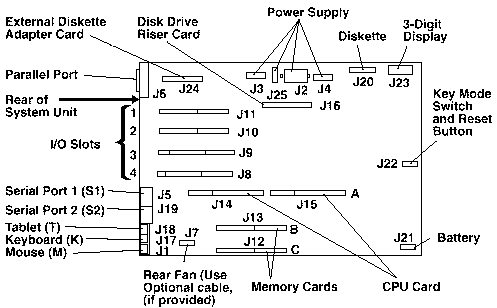

System Planar Connectors, Models 320, 32E, 32H

7012 Memory Card

Model
CPU ID
Memory  Type/Size (Min./Max.)
Base MemoryCard FRU Number
Memory  Size (Bytes)
Memory  FRU Number
CardPairs
320
31
S1 16/32MB
59F4433
1MB 2MB
59F4581 59F4582
No
320
31
S1.5 16/128MB
81F8926
4MB 8MB
70F9973 70F9976
No
32E/32H
35
S1 16/32MB
59F4433
1MB 2MB
59F4581 59F4582
No
32E/32H
35
S1.5 16/128MB
81F8926
4MB 8MB
70F9973 70F9976
No
