The following pictures, submitted by Douglas Finn, show the internal and external aspects of the FastPath 4 hardware. Any image can be clicked to see it larger. Press the BACK button in your browser to return. This model features 10base2 (coaxial) Ethernet and AUI connectivity options. Appletalk is implemented with the rather odd choice of a DB9 female connector instead of the more usual round connector.

FastPath 4 Packaging Box

FastPath 4 Box Interior, with packing materials.

FastPath 4, removed from box with software and manual.

FastPath 4 Head-On Front Panel View

FastPath 4 Rear View, with connectors

FastPath 4 Side Panel View

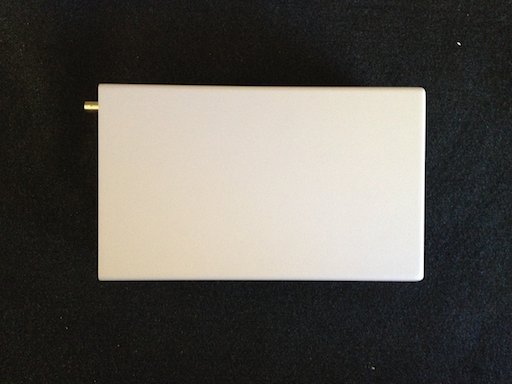

FastPath 4 Bottom Panel View, with feet

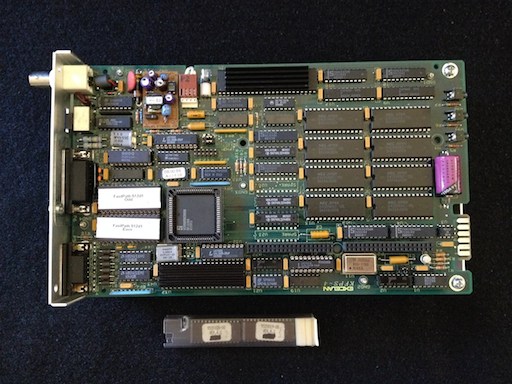

FastPath 4 Main Logic Board View
